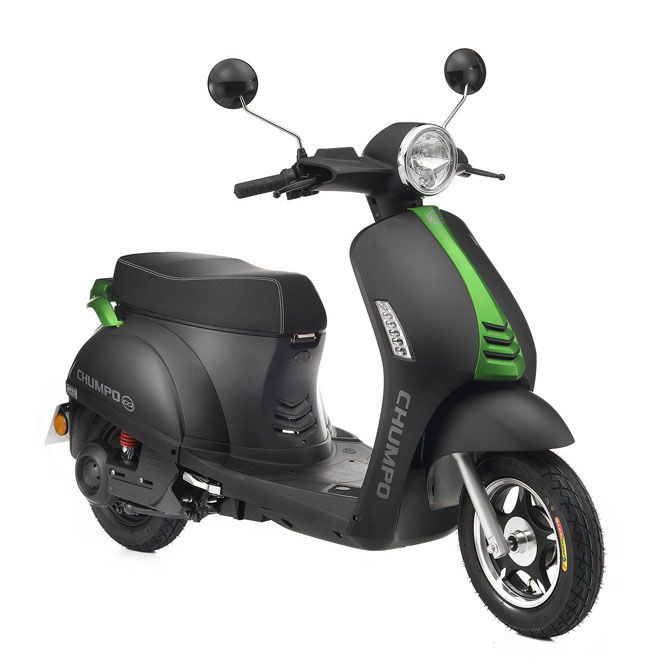

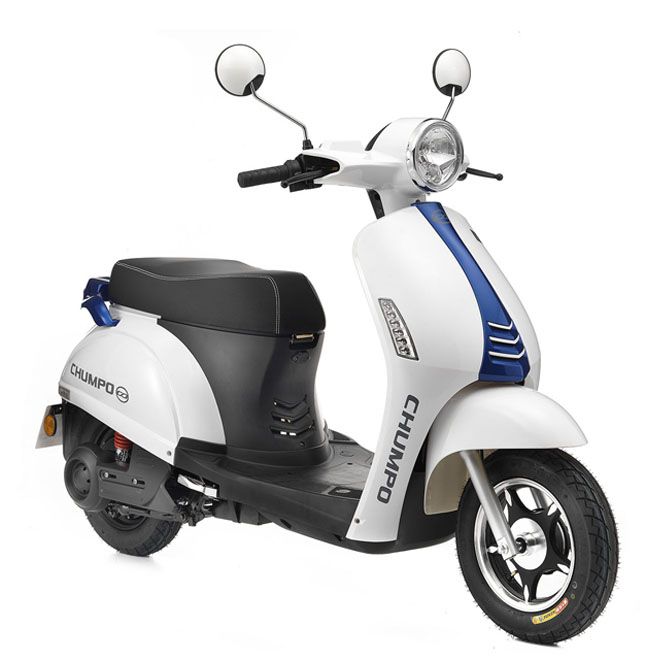

Future
Features

Electromic display unit

Pass CHC test/inspection, have the certificate and qualification mark from MOEA

DC burshless motor

Front and rear baskets (optional)
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
(Please contact the sales about the latest specification of products)
01 Model | Future | |
02 Size( L / W / H ) | 1795 / 650 / 1065 (mm) | |
03 Cushion Height | 780 mm | |
04 Wheelbase | 1350 mm | |
05 Tires Size | 3.0 - 10 | |
06 Weight (W/o Battery) | 40 KG | |
07 Battery Weight | 24AH - 7.9Kg/PC Leas Acid Battery | |
08 Color | White / Matte Red / Matte Black |
01 Front Brake/Rear Brake | Drum Brake | |
02 Hub Motor | DC Burshless Motor 48V500W | |
03 Battery | FixedLead Acid Battery*4 | |
04 Charging Cycle | <500 times | |
05 Charging Time | 8-10 hrs | |
06 Charging Input | 110V | |
07 Chargin output | 2.5Ah | |
08 License | NO |
01 Max. Loading | 75Kg | |
02 Travelig Range | 35-45Km | |
03 Max. Speed | 25 Km/h | |
04 Max. Climbing Slope | ≦8°(12%) | |
05 Mode | 1 Mode | |
06 Ridership | 1 People |
