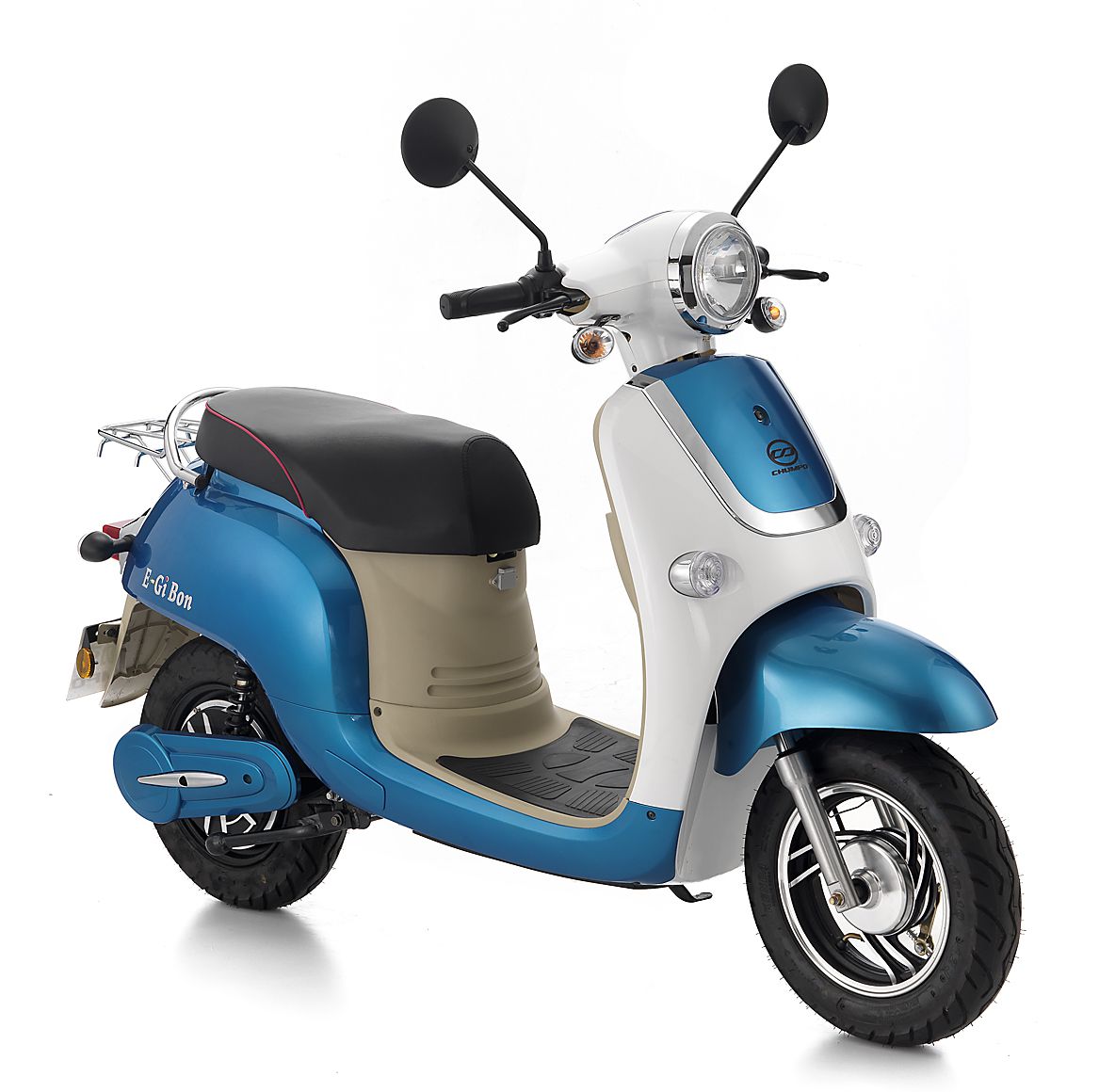

E GI BON
Features

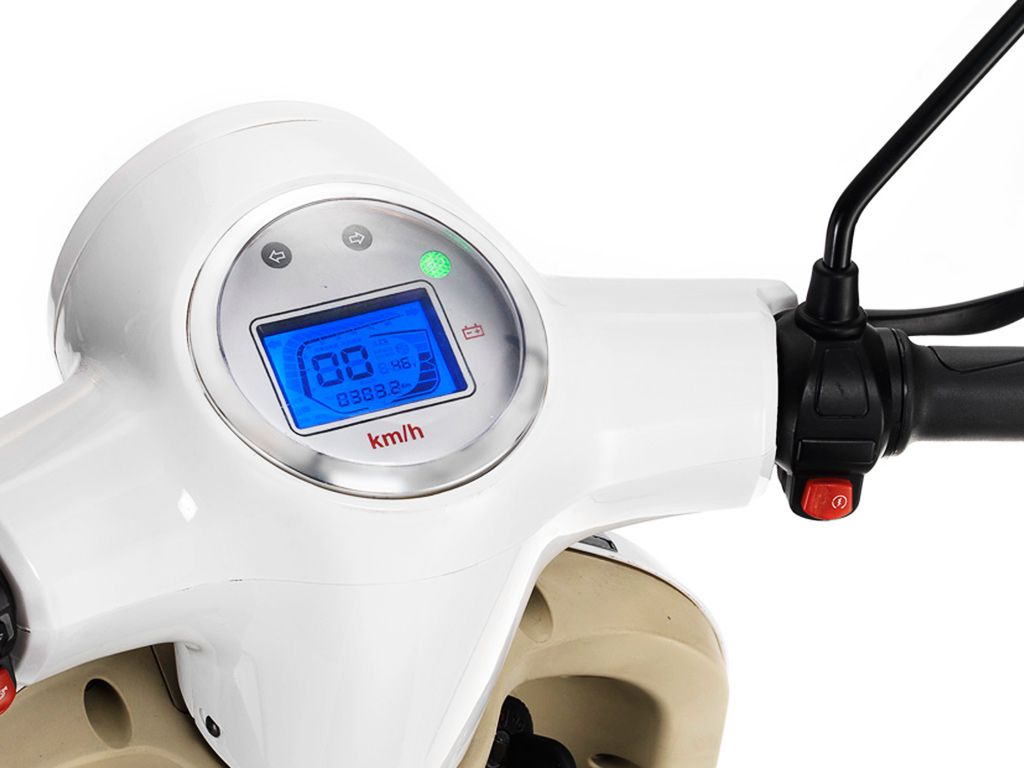

Electromic display unit
Pass CHC test/inspection, have the certificate and qualification mark from MOEA
DC burshless motor
Front and rear baskets (optional)

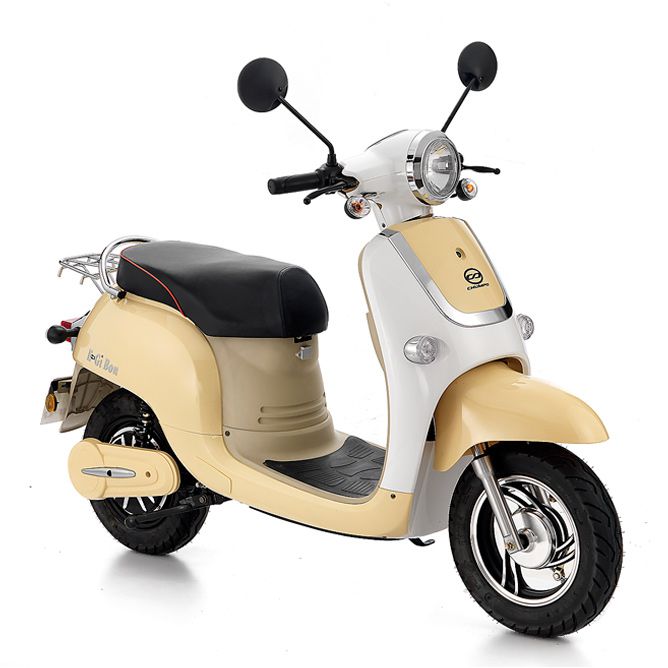

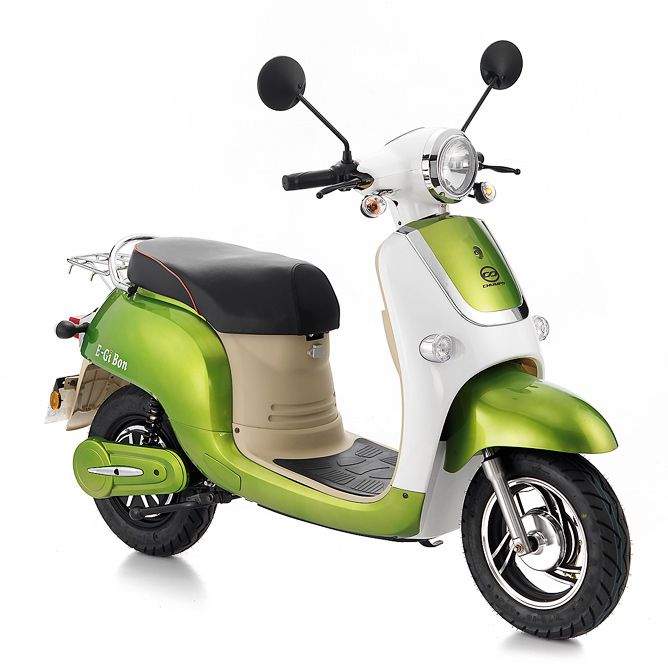

Colors styles
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
(Please contact the sales about the latest specification of products)
| 01 Model | E Gi bon | |
| 02 Size ( L / W / H ) | 1660 / 615 / 1010 (mm) | |
| 03 Cushion Height | 700mm | |
| 04 Wheelbase | 1180mm | |
| 05 Tires Size | 3.0 - 10 | |
| 06 Weight (W/o Battery) | 40KG |
|
| 07 Battery Weight | 24AH - 7.9Kg/PC Leas Acid Battery | |
| 08 Color | Blue / Pink / Green / Yellow |

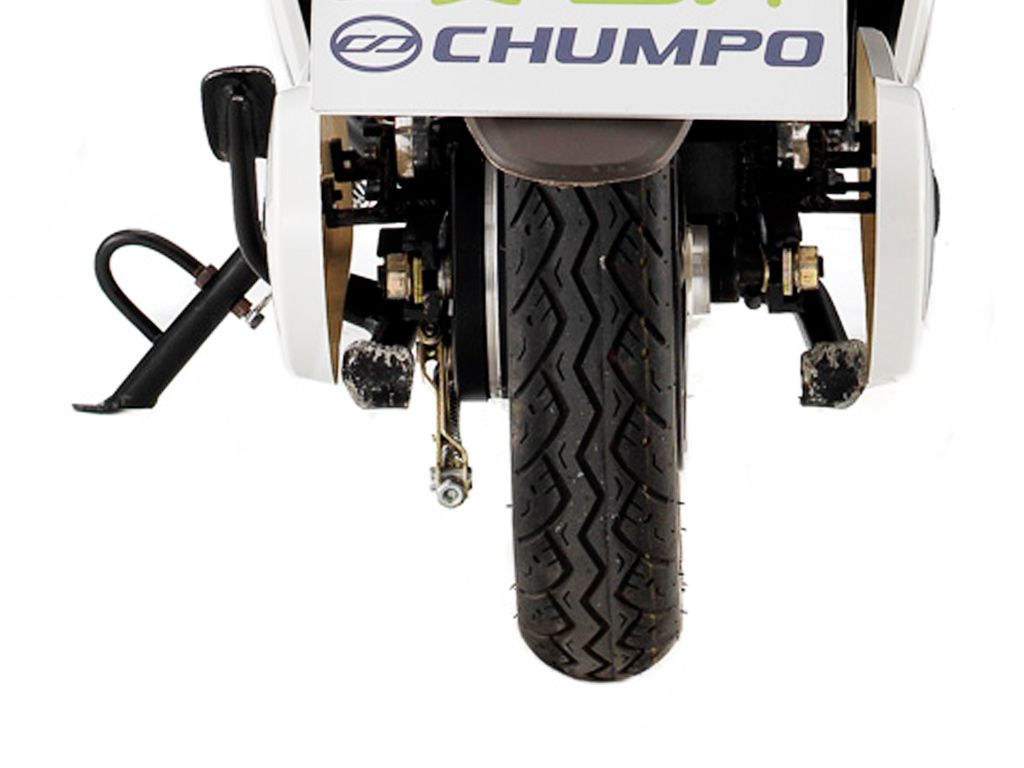

| 01 Front Brake/Rear Brake | Drum Brake | |
| 02 Hub Motor |
DC Burshless Motor 48V500W DC Brushless |
|
| 03 Battery |
FixedLead Acid Battery*4 Lead Acid*4 |
|
| 04 Charging Cycle | <500 times | |
| 05 Charging Time | 8-10 hrs | |
| 06 Charging Input | 110V | |
| 07 Chargin output | 2.5Ah | |
| 08 License | NO |
| 01 Max. Loading | 75Kg | |
| 02 Travelig Range | 60 Km | |
| 03 Max. Speed | 25 Km/h | |
| 04 Max. Climbing Slope | ≦8°（12%） | |
| 05 Mode | 1 Mode | |
| 06 Ridership | 1 People |
